Tabletop Arcade Cabinet Plans

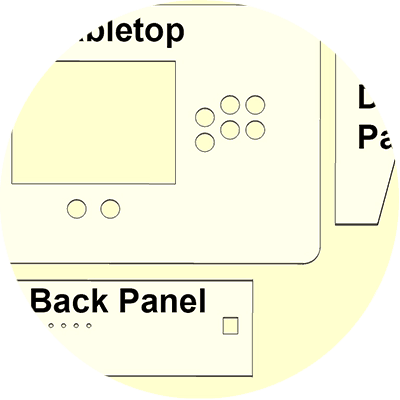

All new version 4.0 PLATINUM EDITION plans! These plans include the materials list and detailed dimensions for the Tabletop Arcade Cabinet. Included is a set of drilling templates for the control panel and speaker holes. Also included is the electronics parts lists, wiring instructions, and and tips and tricks!


[alert type=yellow]All New Version 4.0 Plans as of February 2019! If you bought the version 1-3 plans, just log in to your account and re-download the latest version FREE![/alert] Have you ever wanted to build your very own bartop arcade cabinet?  Well now you can with The Geek Pub’s Bartop Arcade Cabinet Plans!  If you haven’t already watched our videos and read about this project, be sure to check out the following articles and video about these plans: RetroPie Bartop Arcade Cabinet Build The new 4.0 PLATINUM EDITION of these plans are the best plans yet!  We continuously update these plans to make sure they are the best on the Internet. Plan include both Inches and Millimeters to support bartop arcade builders worldwide! Get ready to have such an awesome time replaying all of your favorite arcade games from the past and reminiscing old times with friends! Having your own Bartop arcade in your game room, bar, or dorm room will make everyone think you are awesome! So let’s do this! download plans free With these plans you will have all of the dimensions for each of the parts you’ll need to cut from MDF or plywood, depending on which materials you decide to use. Detailed drilling templates that include a paper template for all of the hole locations positions for the joysticks and buttons, as well as the speaker holes.  Just use some spray adhesive or masking tape to hold it in place while you drill them out.  There’s also a parts list for the electrical components you’ll need to power your PC and the lighted marquee. New version 4.0. of the plans include clarifications, more details, and breakouts. NOT CONVINCED? Learn why you should choose our arcade plans!

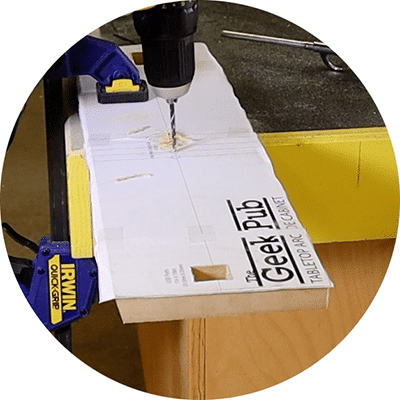

Includes the following spray and stick templates:

  • Single Player Control Panel
  • Two Player Control Panel
  • Left and Right Speakers Grills
  • Optional front USB Ports
  • Optional Cooling Fan Grill

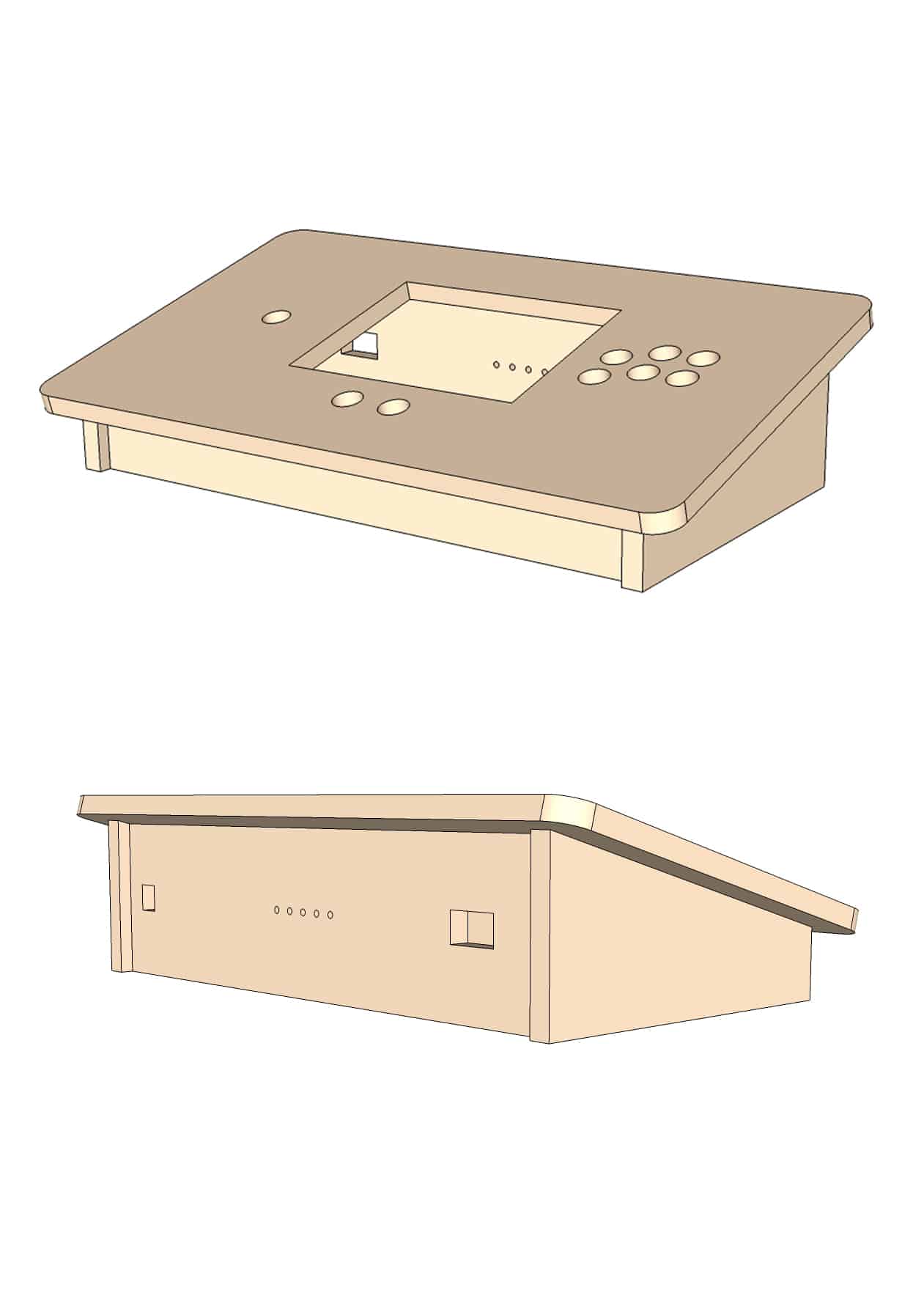

Included is the complete SketchUp file that you can use to get a detailed dimension of any component, including any cutting angles (if you plan to miter your cabinet pieces, optional), etc.  You can also use the re-size tool within SketchUp to easily make the entire cabinet bigger or smaller, or resize any section of the cabinet.  The sky is the limit.  So grab these Bartop Arcade Cabinet Plans and get building yours today!  We can’t wait for you to post pictures of your completed project on our Facebook page so we can share it with everyone!

Get the Arcade Two Plan Bundle

Arcde Plan BundleIf you’re interested in building both arcade cabinets, or you are not sure which cabinet you’d like to build and want to keep your options open you can also buy a discounted Arcade Two Plan Bundle that includes both the full-size arcade cabinet plan and the bartop arcade cabinet plan. If you’re like me you’ll want to build both! Get the two plan bundle here.

Get the Bartop Arcade Two Plan Bundle

If you’re interested in building both bartop arcade cabinets, or you are not sure which cabinet you’d like to build and want to keep your options open you can also buy a discounted Bartop Arcade Two Plan Bundle that includes both the Pacade Bartop Arcade and the Original Bartop Arcade cabinet plan. If you’re like me you’ll want to build both! Get the bartop arcade two plan bundle here. [divider]Some of Our Customer’s Builds[/divider] Our customers are the greatest, and they build some fantastic cabinets!  Check out some of their work!
