JAMMA Harness
$14.99

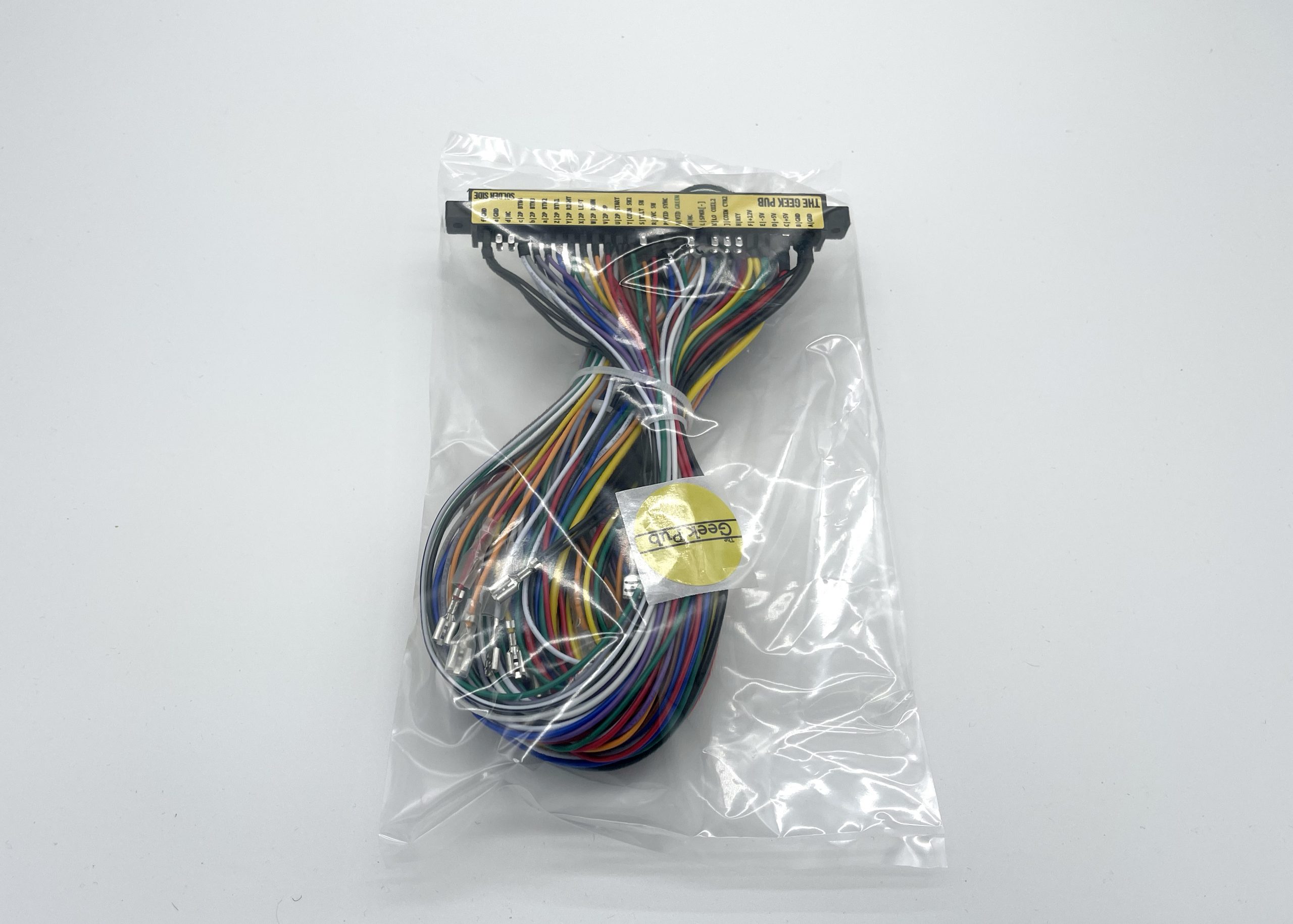

Arcade JAMMAHarness Wiring 56 Pin with Harness Cable for replacement or multi arcade (multicade) systems.
Only 3 left in stock (can be backordered)
&url=https://www.thegeekpub.com/product/red-arcade-button-led-backlit-30mm/&media=https://www.thegeekpub.com/wp-content/uploads/2021/09/Red-Arcade-Button-by-The-Geek-Pub.jpg){kind=link}
&url=https://www.thegeekpub.com/product/green-arcade-button-led-backlit-24mm/&media=https://www.thegeekpub.com/wp-content/uploads/2021/09/Green-Arcade-Button-by-The-Geek-Pub.jpg){kind=link}
&url=https://www.thegeekpub.com/product/green-arcade-button-led-backlit-30mm/&media=https://www.thegeekpub.com/wp-content/uploads/2021/09/Green-Arcade-Button-by-The-Geek-Pub.jpg){kind=link}

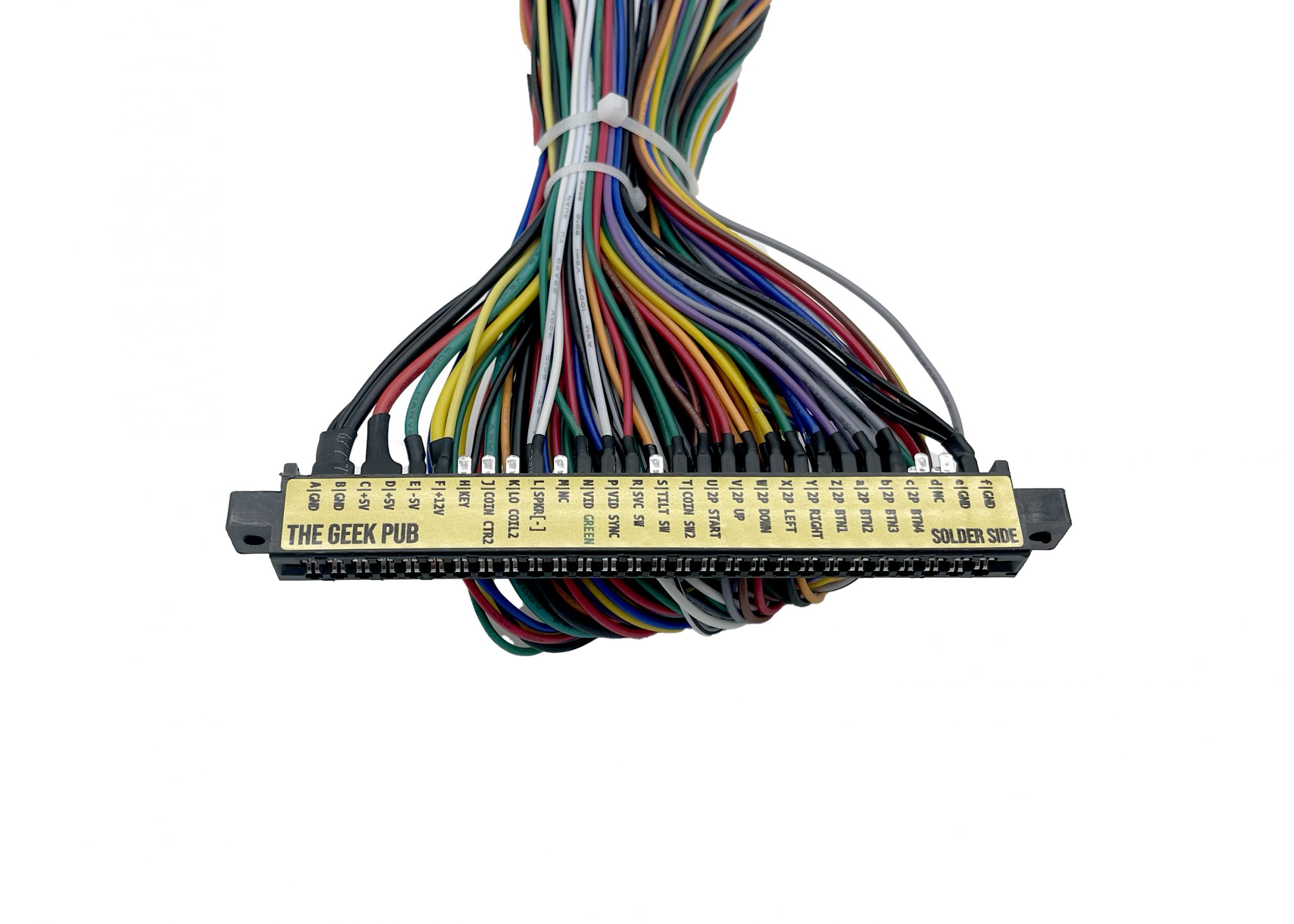

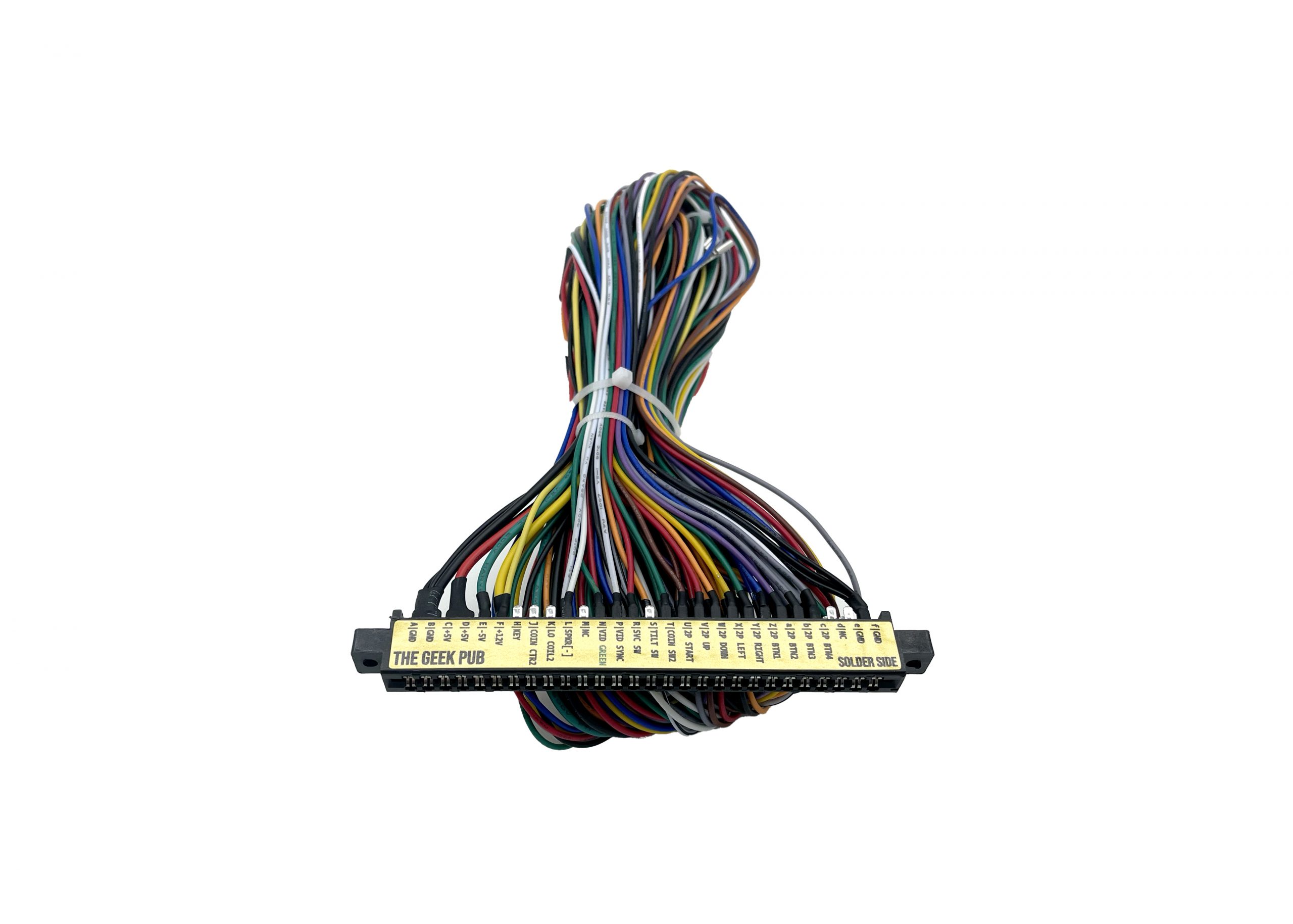

56 pin (2x28 pin) JAMMA harness for use with existing cabinets with original JAMMA boards, or for use in new arcade builds using a multicade board.
- 56 pin (28 each side)
- Works with standard JAMMA arcade cabinets and PCBs.
- Cable is 5 feet long (1.5 meters)
- 22/24 AWG wiring as appropriate
- Quick connect terminals for+5VDC, +12VDC, -5VDC and ground
- Ground loop
- Labeled connector for 2 players, power, coin doors, test, service, video, and sound
You can find the JAMMA pinout and wiring here.
