The Geek Pub Arcade Power Supply GP-9916 (16 Amp)
Original price was: $39.99.$34.99Current price is: $34.99.
The Geek Pub GP-9916 Arcade Power Supply for powering your arcade cabinet build, or for replacing power supplies when refurbishing original arcades.
| Weight | 1.45 lbs |
|---|---|
| Dimensions | 7.5 × 5.25 × 2.25 in |
| Origin | China |
In stock

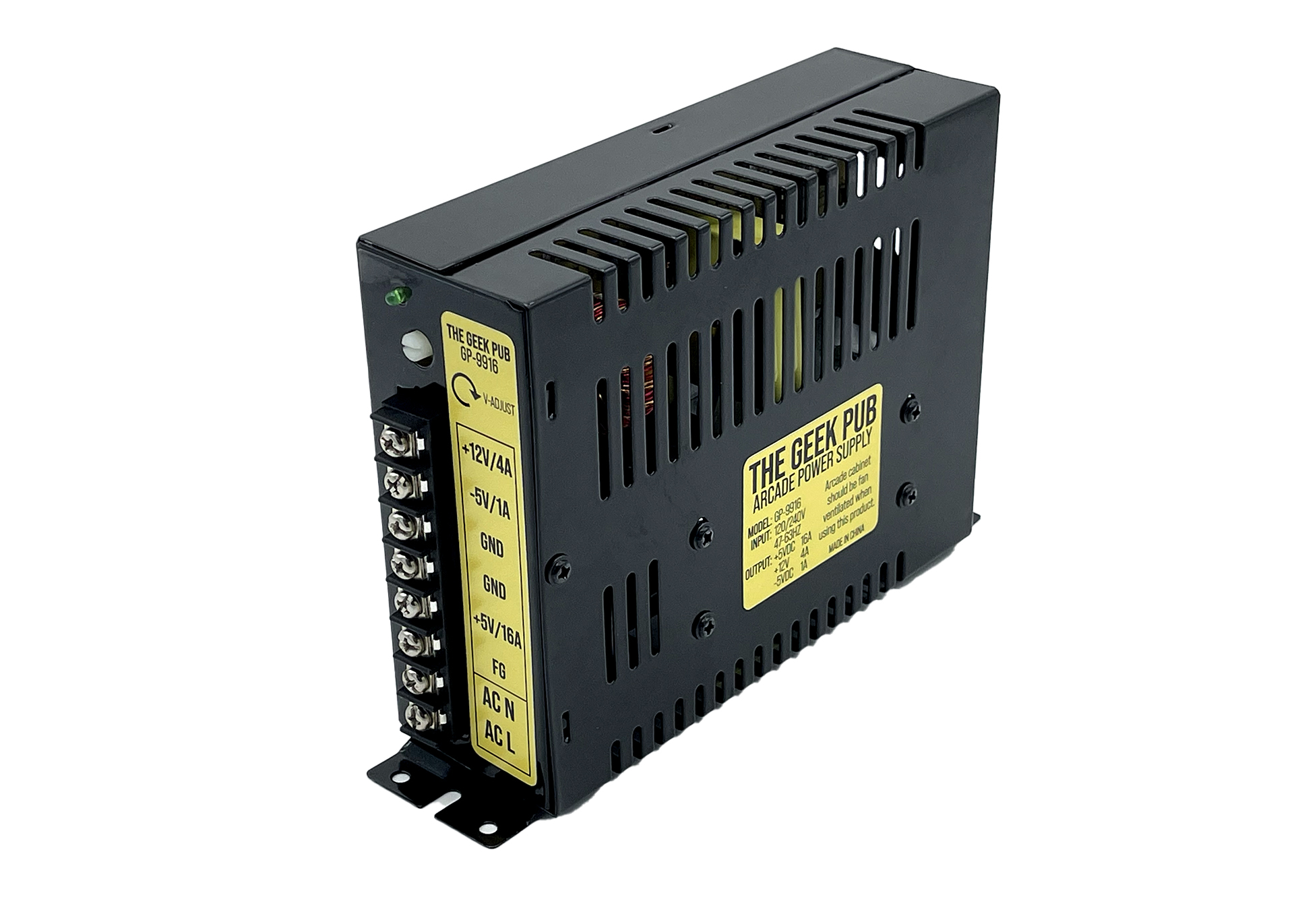

When building or restoring an arcade, you’re going to need an arcade power supply. The Geek Pub GP-9916 power supply offers an AC input (either 120V or 240V selectable), a +12 volt 4 amp output, a +5 volt 16 amp output, and a -5 volt 1 amp output. This arcade power supply features a voltage adjustment for dialing in the power output voltages for your setup.
Arcade Power Supply GP-9916 Specifications
- Input Voltage: 120V or 240V selectable (47Hz to 63Hz)
- AC Fault Ground terminal

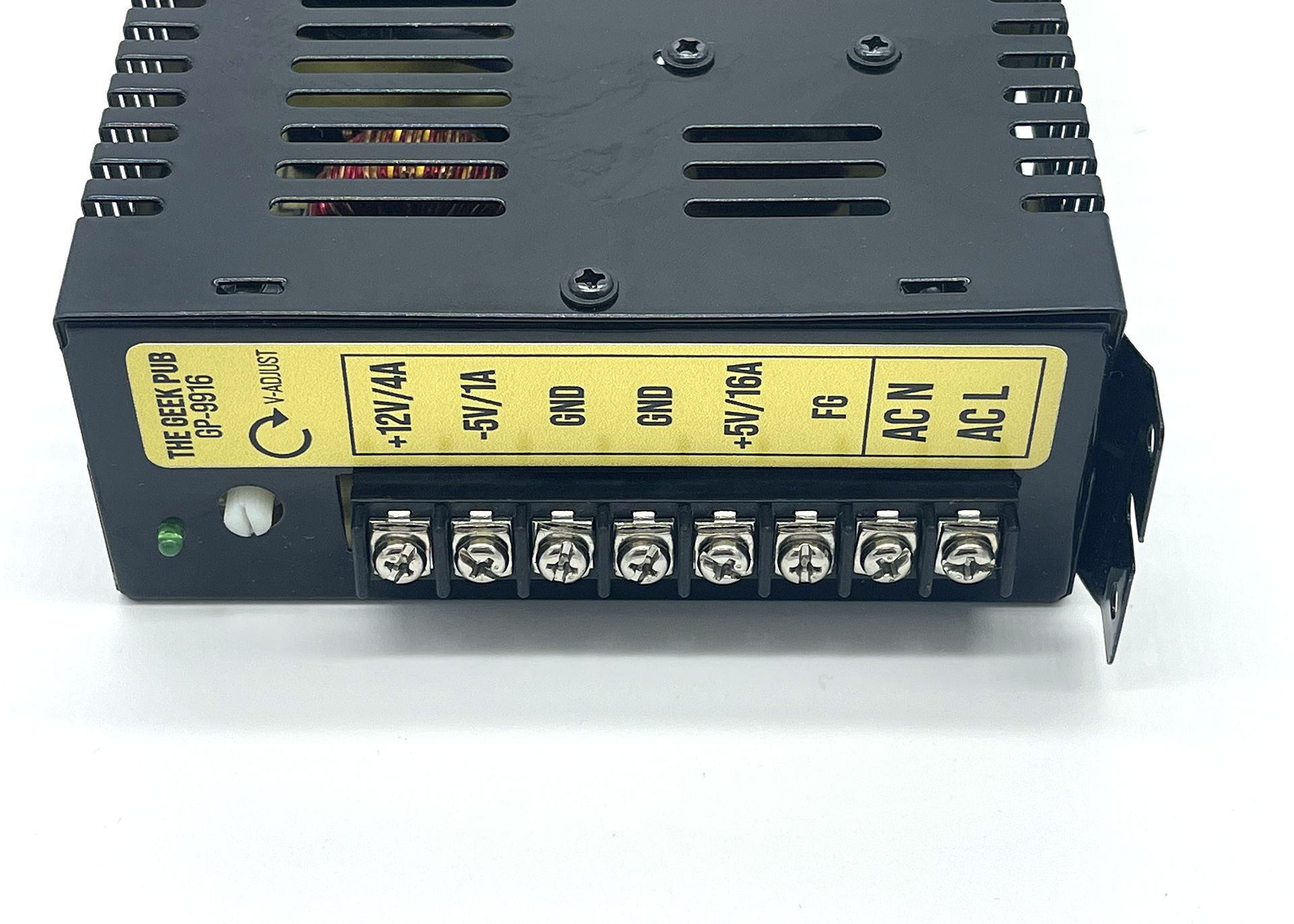

- Output Voltage 1: +12V/4A
- Output Voltage 2: +5V/16A
- Output Voltage 3: -5V/1A
- Two DC ground terminals
For most applications we recommend your arcade cabinet have active ventilation to improve the lifespan of this power supply as well as other electronic components inside your arcade. Can be used with multicade JAMMA boards, original arcade cabinets, Raspberry Pi arcades (with proper wiring) and more!
