Pacade Bartop Arcade Cabinet Plans

(1 customer review)


All new version v4.0 EDITION plans! These plans include the materials list and detailed dimensions for the Arcade Cabinet. Included is a set of drilling templates for the control panel and speaker holes. Also included is the electronics parts lists, wiring instructions, and and tips and tricks!



All New Version v4.0 Plans as of February 2021! If you bought the version 1-3 plans, just log in to your account and re-download the latest version FREE!

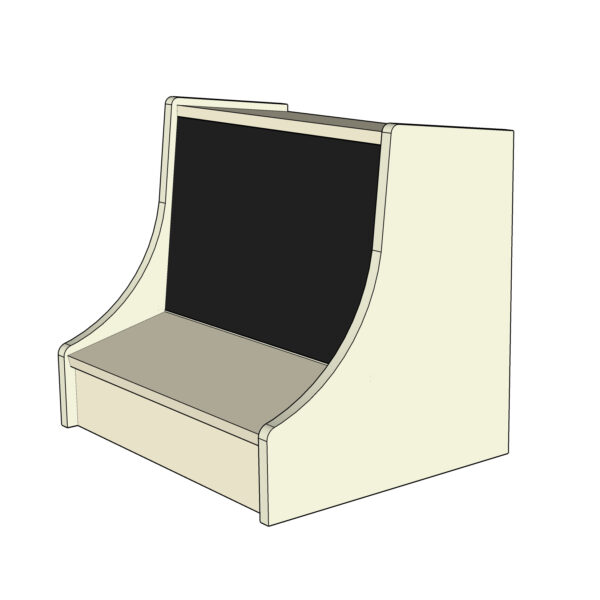

After lots of feedback from our customers we have created an all new Bartop Arcade cabinet we’re calling the Pacade! This cabinet is just like our original Bartop Arcade Cabinet Build, but with a few modifications. The Pacade changes the game and looks pretty darn sweet!  Unlike the original Bartop Arcade, the Pacade Bartop Arcade is shorter. It no longer has a lighted marquee.  This makes the Pacade perfect for smaller spaces.  This also means the Pacade doesn’t need an LED light or a marquee printed, reducing the complexity.

The new 4.0 PLATINUM EDITION of these plans are the best plans yet!  We continuously update these plans to make sure they are the best on the Internet. Plan include both Inches and Millimeters to support bartop arcade builders worldwide!

Get ready to have such an awesome time replaying all of your favorite arcade games from the past and reminiscing old times with friends! Having your own Bartop arcade in your game room, bar, or dorm room will make everyone think you are awesome! So let’s do this!

download plans free

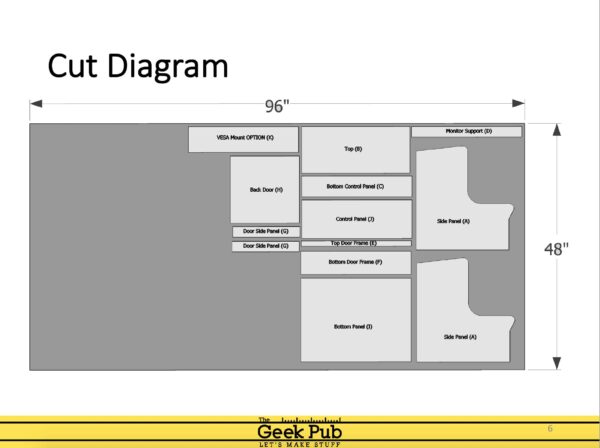

With these plans you will have all of the dimensions for each of the parts you’ll need to cut from MDF or plywood, depending on which materials you decide to use. Detailed drilling templates that include a paper template for all of the hole locations positions for the joysticks and buttons, as well as the speaker holes.  Just use some spray adhesive or masking tape to hold it in place while you drill them out.  There’s also a parts list for the electrical components you’ll need to power your PC and the lighted marquee. New version 5.0. of the plans include clarifications, more details, multiple side panel template choices, and breakouts.

NOT CONVINCED? Learn why you should choose our arcade plans!

Includes the following spray and stick templates:

  • Single Player Control Panel
  • Two Player Control Panel
  • Left and Right Speakers Grills

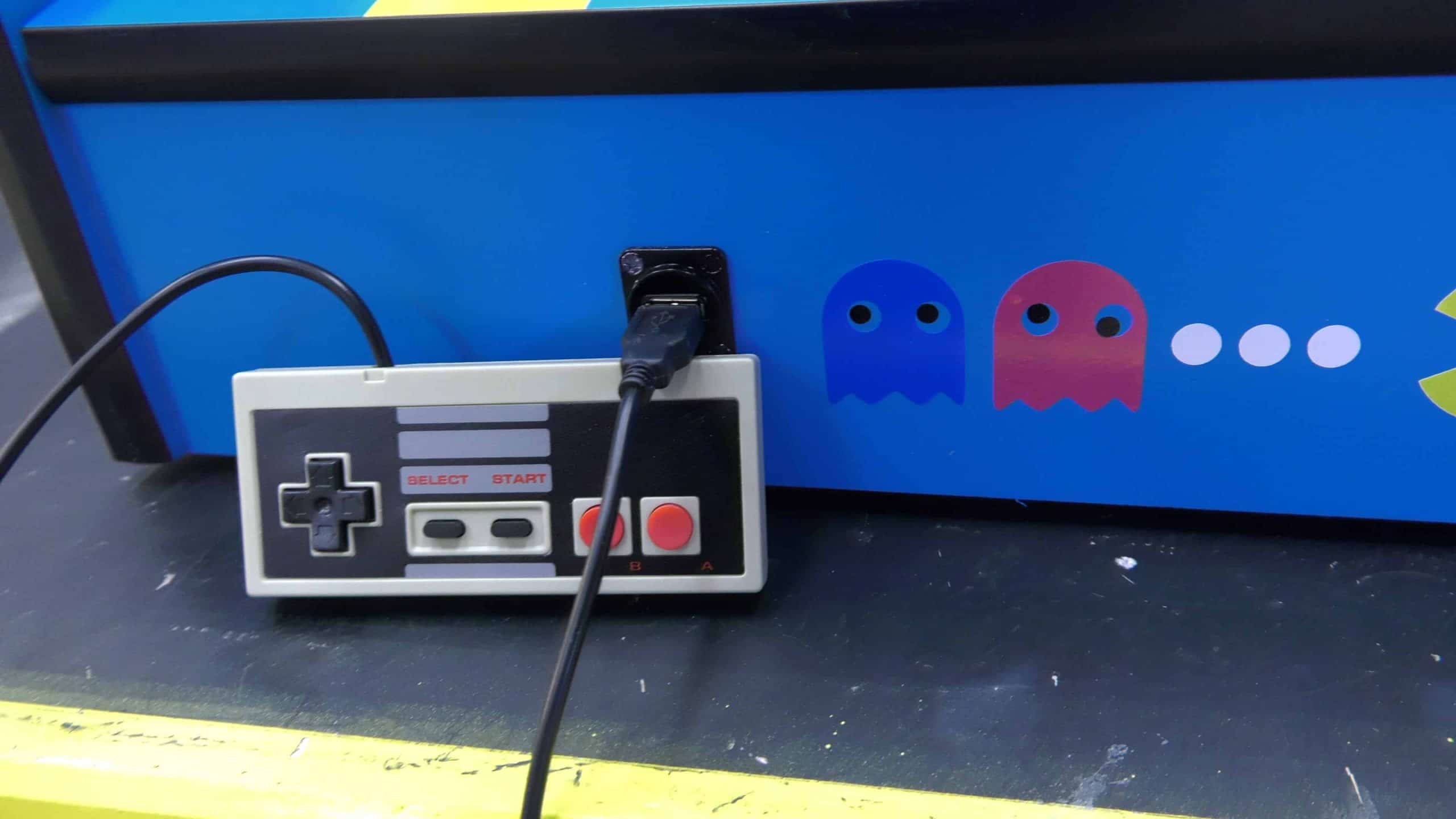

  • Optional front USB Ports
  • Optional Cooling Fan Grill

You can get all of the details on installing RetroPie on your  Raspberry Pi from the RetroPie website.

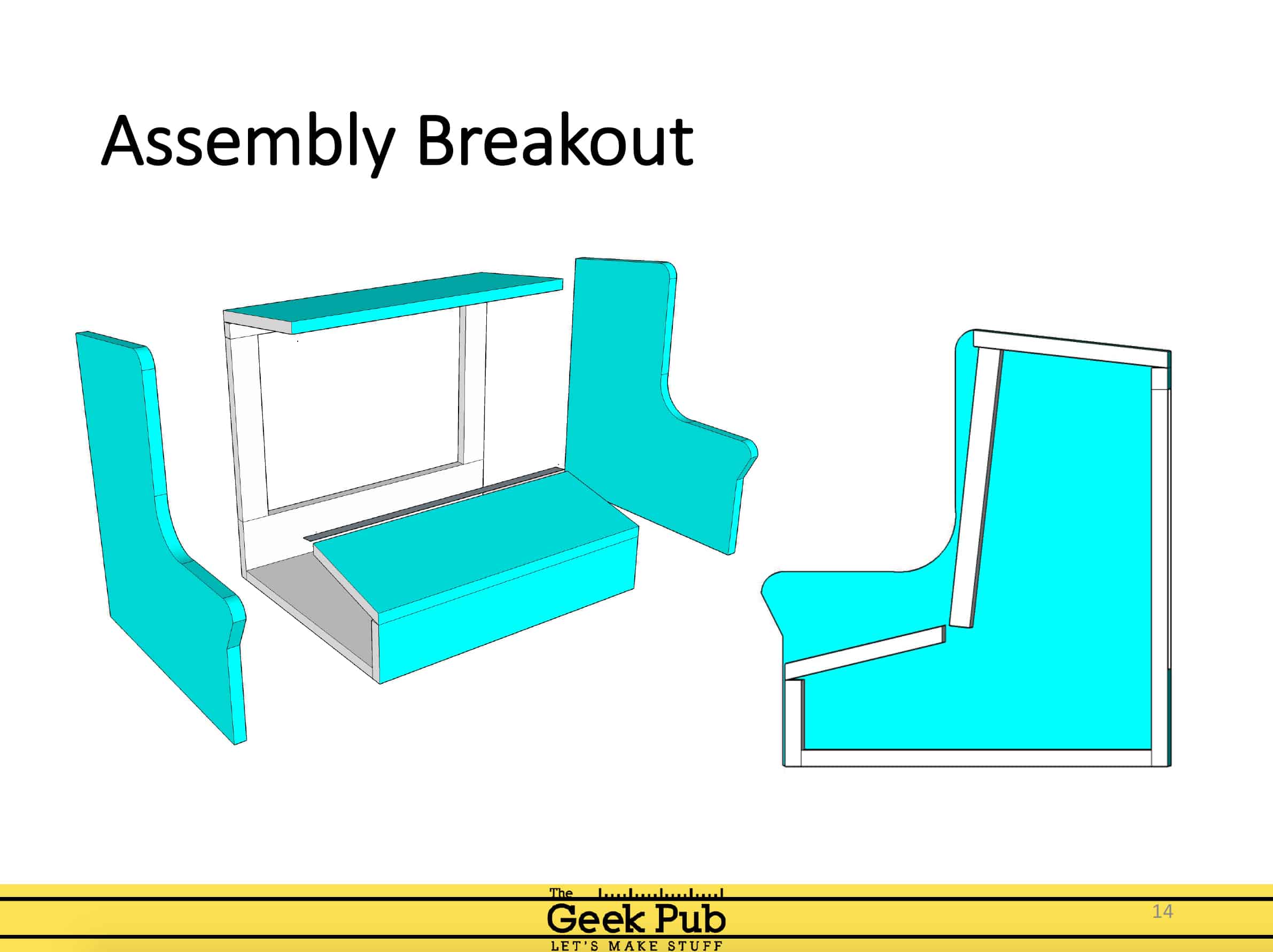

Included is the complete SketchUp file that you can use to get a detailed dimension of any component, including any cutting angles (if you plan to miter your cabinet pieces, optional), etc.  You can also use the re-size tool within SketchUp to easily make the entire cabinet bigger or smaller, or resize any section of the cabinet.  The sky is the limit.  So grab these Bartop Arcade Cabinet Plans and get building yours today!  We can’t wait for you to post pictures of your completed project on our Facebook page so we can share it with everyone!

Get the Bartop Arcade Two Plan Bundle

If you’re interested in building both bartop arcade cabinets, or you are not sure which cabinet you’d like to build and want to keep your options open you can also buy a discounted Bartop Arcade Two Plan Bundle that includes both the Pacade Bartop Arcade and the Original Bartop Arcade cabinet plan. If you’re like me you’ll want to build both!

Get the bartop arcade two plan bundle here.
