Arcade Two Plan Bundle

$30.00 $9.99

All new version 4.0 plans!  This Arcade Plan Bundle includes the plans for the full-size arcade cabinet and the bartop arcade cabinet at discount when purchased together!

Description

Description

[alert type=yellow]All New Version 4.0 Plans as of February 2019! If you bought the version 1-3 plans, just log in to your account and re-download the latest version FREE![/alert]

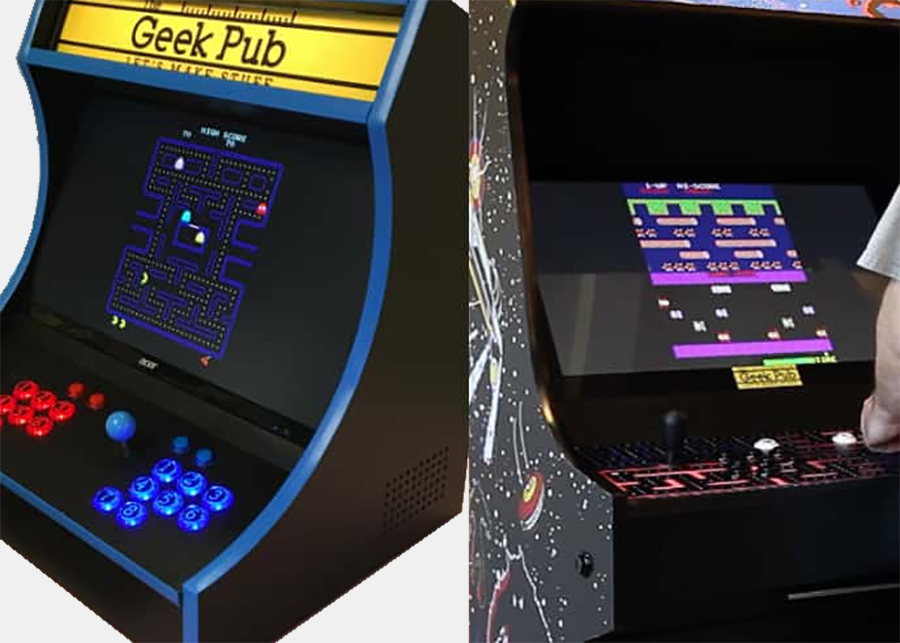

This Arcade Plan Bundle includes the plans for the full-size arcade cabinet and the bartop arcade cabinet at discount when purchased together!

The new 4.0 PLATINUM EDITION of these plans are the best plans yet!  We continuously update these plans to make sure they are the best on the Internet. Plan include both Inches and Millimeters to support arcade builders worldwide!

NOT CONVINCED? Learn why you should choose our arcade plans!

download plans free

If you’re not sure which cabinet you want to build, you can explore your options with both sets, or if you are like me you’ll just have to build both cabinets! One arcade cabinet is never enough!  The Arcade Plan Bundle let’s you have the best of both worlds!

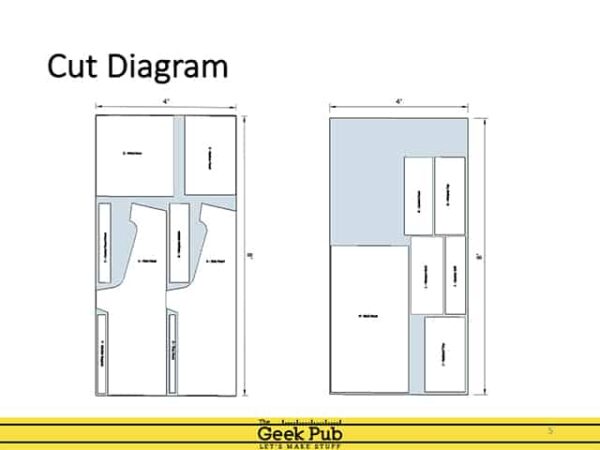

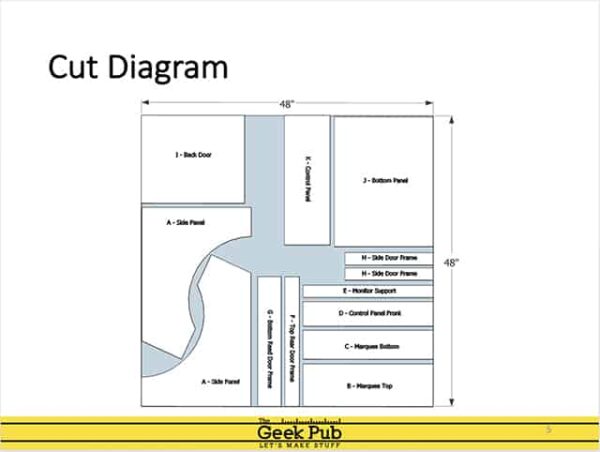

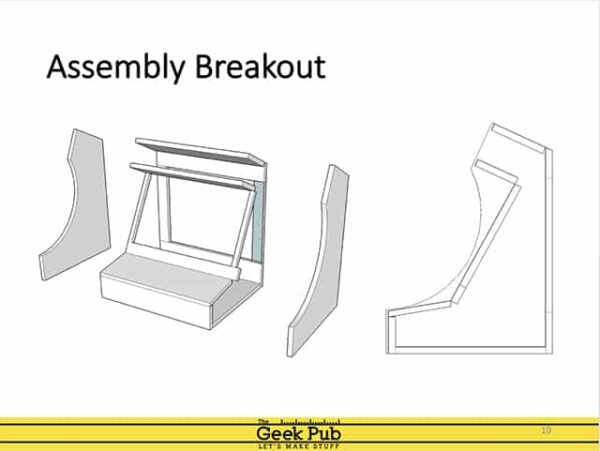

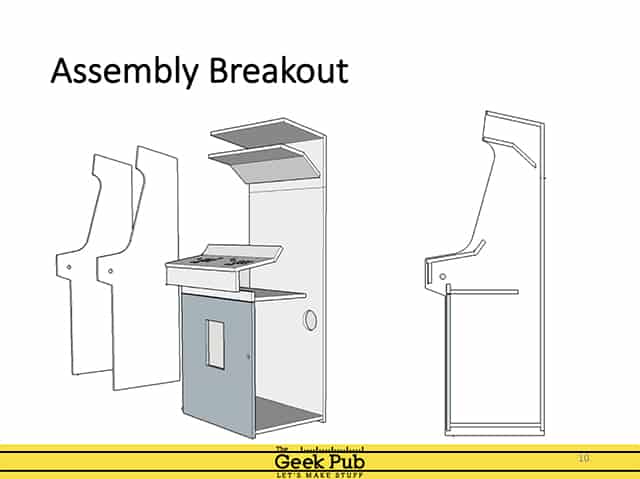

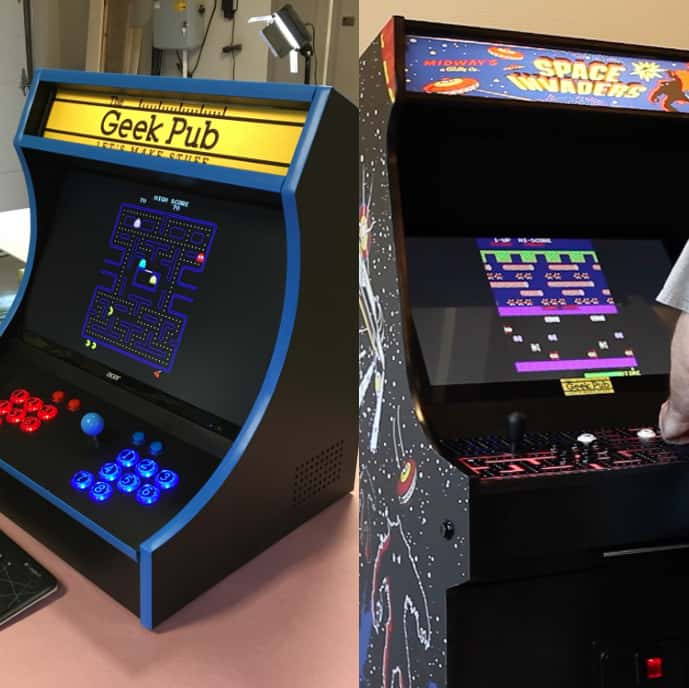

Arcde Plan BundleThe arcade plan bundle includes all of the detailed dimensions and cut lists for all of the components, drilling templates as appropriate for each arcade cabinet, and Amazon links (where appropriate) to the components I purchased as part of my cabinet build. New version 4.0. of the plans include clarifications, more details, and breakouts.

Includes the following spray and stick templates:

  • Single Player Control Panel
  • Two Player Control Panel
  • Left and Right Speakers Grills
  • Optional front USB Ports
  • Optional Cooling Fan Grill

Also included is the Sketchup files for both arcade cabinets which will allow you to modify the cabinet to your exact specifications, or help you find a precise angle or measurement should the simple PDF plans not suit your specific needs.
